Light Fittings

Light fittings, also known as light fixtures or luminaires, are devices that hold and support light sources like bulbs or LEDs, providing necessary illumination for both indoor and outdoor spaces. They play a crucial role in the overall functionality and aesthetics of a space by controlling the direction, intensity, and diffusion of light.

Key Components of Light Fittings:

  1. Housing:

    • The main body of the light fitting, which encloses and protects the electrical components and light source. It can be made from various materials, including metal, plastic, glass, or ceramic.
  2. Light Source:

    • The component that produces light, such as a bulb, LED, or fluorescent tube. The type of light source used impacts the fixture’s energy efficiency, color temperature, and brightness.
  3. Reflectors and Diffusers:

    • Reflectors help direct and focus the light, while diffusers scatter light to reduce glare and create a softer, more even illumination.
  4. Mounting System:

    • The method by which the light fitting is attached to a surface, such as a ceiling, wall, or floor. Common types include recessed, surface-mounted, pendant, and track lighting.
  5. Wiring and Electrical Components:

    • Includes sockets, switches, and wiring necessary for the light fixture to connect to the electrical supply and operate safely.

Types of Light Fittings:

  1. Ceiling Fixtures:

    • Installed directly on the ceiling, these include chandeliers, pendant lights, flush-mount lights, and recessed lighting.
  2. Wall-Mounted Fixtures:

    • Attached to walls, these include sconces, wall washers, and picture lights, often used for accent lighting or to enhance architectural features.
  3. Portable Fixtures:

    • These are movable and include table lamps, floor lamps, and desk lamps, offering flexibility in lighting specific areas.
  4. Outdoor Fixtures:

    • Designed for exterior use, these include pathway lights, floodlights, and porch lights, built to withstand weather conditions and enhance safety and security.
  5. Specialty Fixtures:

    • Used for specific purposes, such as track lighting, under-cabinet lights, or task lighting, which are tailored to particular tasks or areas.

Functions and Benefits:

  • Illumination: The primary function of light fittings is to provide adequate light for various activities, ensuring safety and comfort.
  • Aesthetics: Light fittings contribute to the décor and style of a space, enhancing its visual appeal.
  • Energy Efficiency: Modern light fittings, especially those using LEDs, are designed to be energy-efficient, reducing electricity consumption and costs.
  • Versatility: Available in a wide range of styles, sizes, and finishes, light fittings can be selected to match any design preference, from modern to traditional.

Recommendation:

Light fittings are integral to both the functionality and design of any space. By choosing the right fixtures, you can effectively illuminate your environment while adding to its aesthetic appeal. Whether for residential, commercial, or outdoor settings, light fittings are essential for creating comfortable, safe, and visually pleasing spaces

Master-R Light Fittings

This light fitting is being used in EDD substation called Master-R, R stands for reflector. It is approved by the EWA construction department. The components used in this light fittings is all European made as specified here under.

  • Type tested by UL.
  • Magnetic Ballast: Helver, Made in Finland.
  • Lamp Holder: BJB, Made in Germany.
  • Starter: PHILIPS, Made in Holland.
  • Wire : 105 deg. Heat resistance.
  • Metal body & reflector made from 0.6mm CR steel sheet. Powder coated with RAL9016.
Light fittings BahrainLED light fittingsModern light fittingsCommercial light fittingsResidential light fittingsEnergy-efficient light fittingsDecorative light fittingsIndustrial light fittingsCustom light fittingsHigh-quality light fixtures
Light fittings BahrainLED light fittingsModern light fittingsCommercial light fittingsResidential light fittingsEnergy-efficient light fittingsDecorative light fittingsIndustrial light fittingsCustom light fittingsHigh-quality light fixtures
Weather Proof Fitting:
dustproof, waterproof and impact resistant

PRIMA

prima pc 00 580x0 1w
prima pc 03
prima pc 08

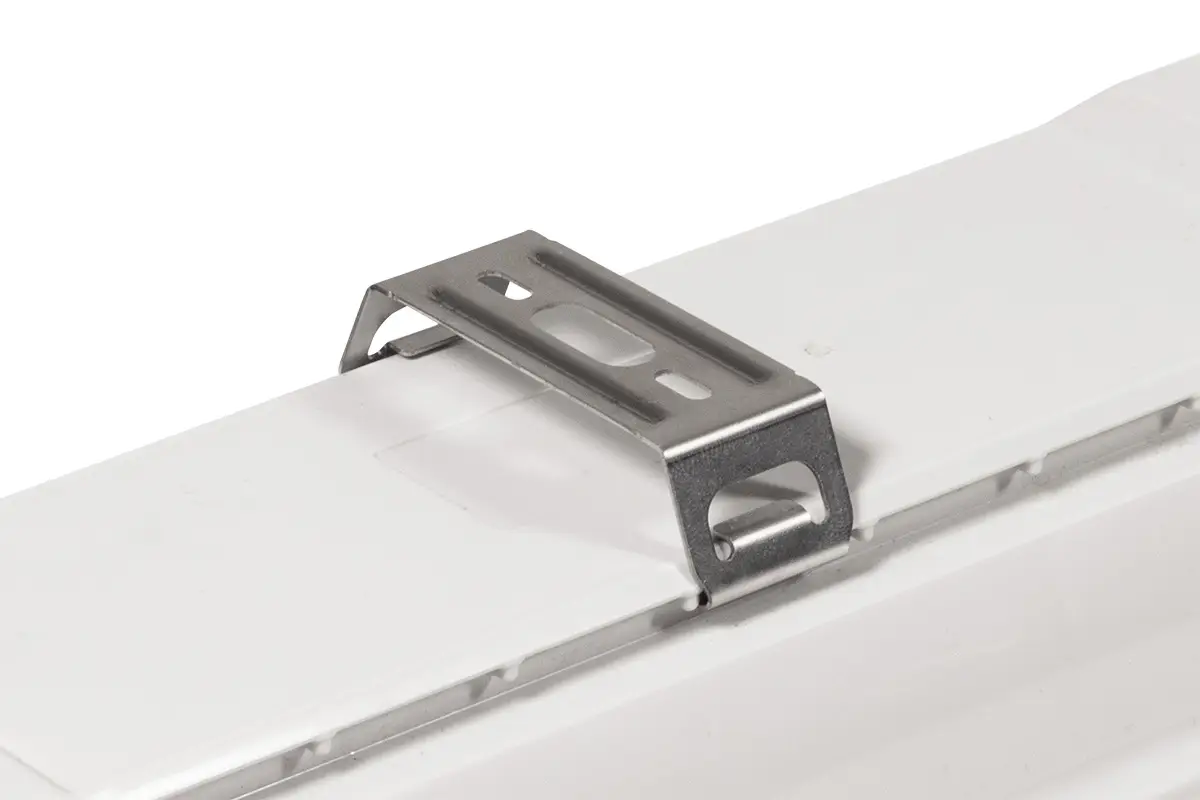

prima pc 07

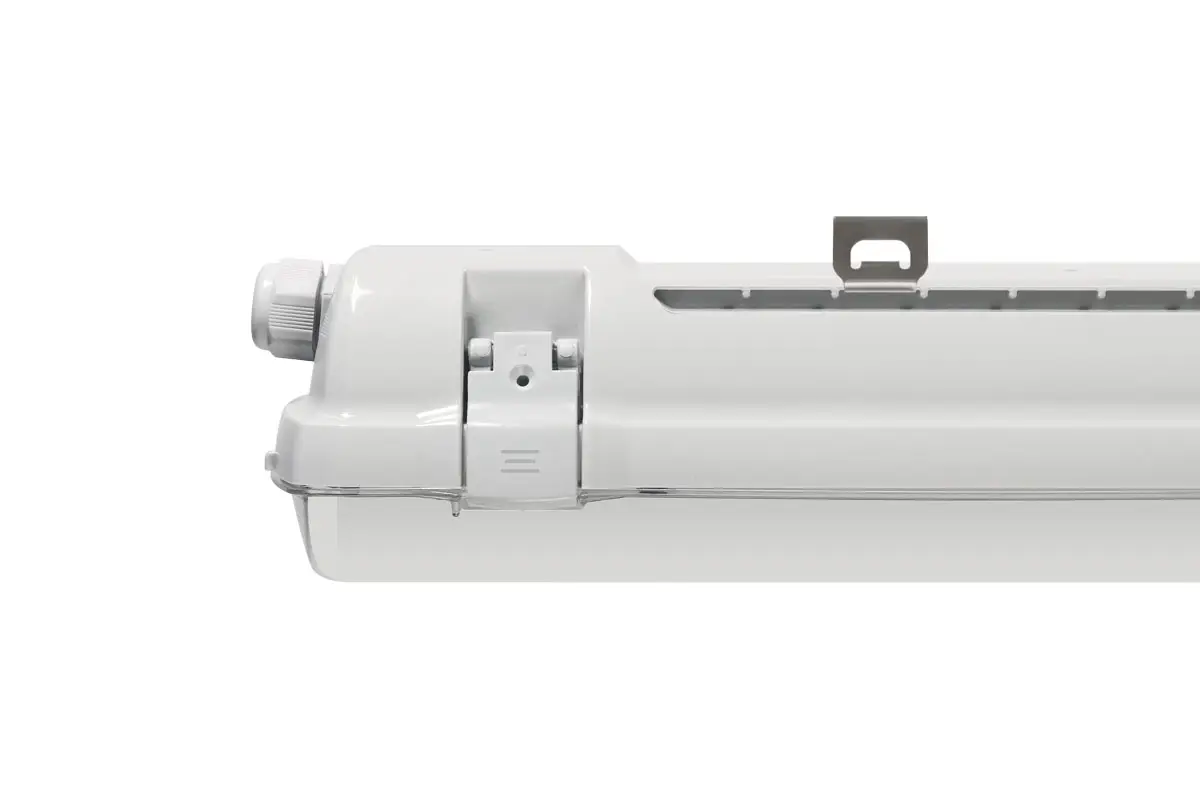

prima pc 06

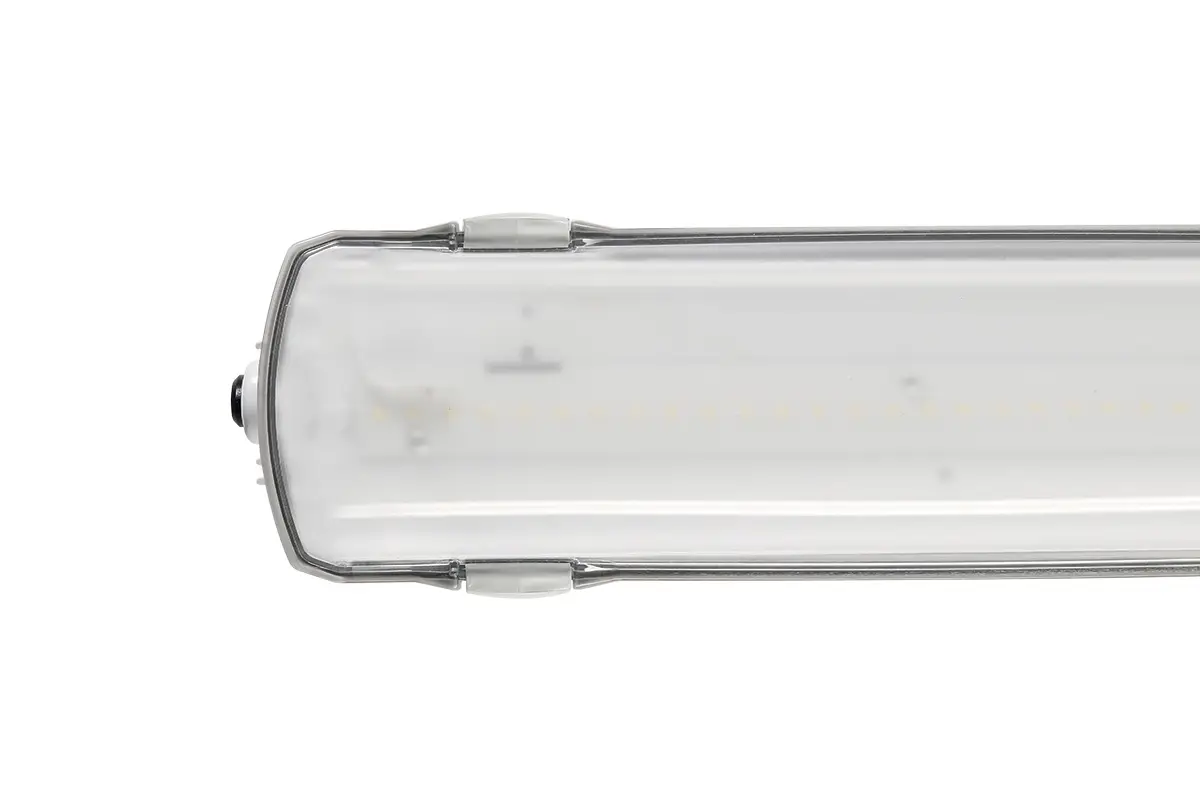

prima pc 04

Attachment (Installation) method

  • Suitable for suspended mounting
  • Suitable for ceiling mounting
  • Suitable for wall mounting
  • Suitable for surface mounting

Technical Data

  • System efficacy: 163 lm/W
  • Degree of protection: IP66/IP69
  • Minimum ambient temperature: ta = -25 °C
  • Maximum ambient temperature: ta = 50 °C
  • Life time: 50000 hours / L90/B10
  • Unified Glare Ratio (UGR) from 21,4 to 26,2
  • Impact strength: IK10
  • Chromaticity tolerance (initial MacAdam): SDCM3EPDC
nakres prima
krivka prima

Materials / finishes

  • Body: grey PC (high mechanical resistance, UV stability, RAL 7035)
  • Diffuser: translucent PC (high mechanical resistance, UV stability)
  • Reflector: steel sheet, white (RAL 9016)
  • Clips: polyamide + 15 % fibreglass, stainless steel + polyamide
  • Sealing: polyurethane (PUR), foam-filled base groove
  • Connection: screwless three-pole terminal block, screwless three-pole terminal block, 3-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless five-pole terminal block, 5-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless five-pole terminal block, screwless seven-pole terminal block, 7-wire connecting cabling for feed-through installation (1.5 mm2 cross-section, 2.5 mm2 available on demand), screwless seven-pole terminal block
  • Cable glands: PG 13.5 thread

Available:

  • with 2 Lamp 4Ft (LED or Magnetic Ballast)
  • with 1 tube 4Ft (With LED of magnetic Ballast)
  • with 2 lamp 1.5Ft (with LED or Magnetic Ballast)
  • with 1 lamp 1.5Ft (with LED or Magnetic Ballast)
  • It can be delivered in emergency version
  • It can be delivered in dimmable version
